TNPU080513K7AZEN00

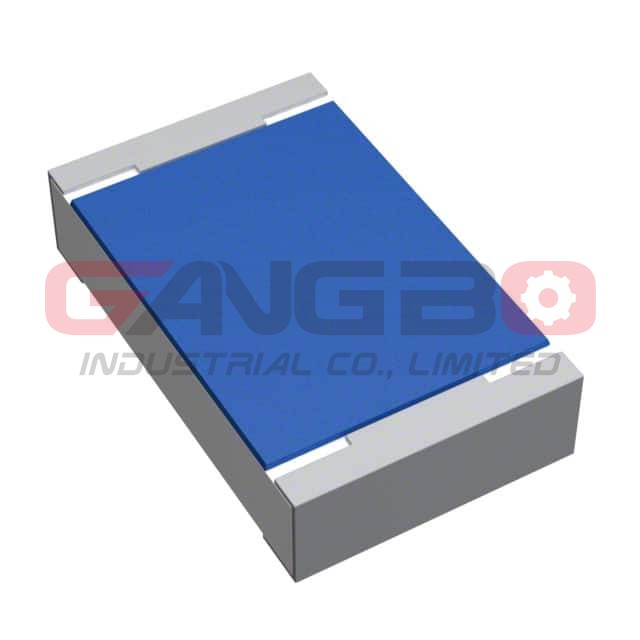

Image is for reference, please contact us to get the real picture

Part No :: TNPU080513K7AZEN00

Manufacturer: Vishay / Dale

Description: RES SMD 13.7KOHM 0.05% 1/8W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 749374 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 27 - Oct 01 2025

PDF: TNPU080513K7AZEN00 PDF

Type	Description
Series:	TNPU e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	13.7 kOhms
Tolerance:	±0.05%
Power (Watts):	0.125W, 1/8W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±5ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	AEC-Q200
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

TNPU080513K7AZEN00 is available at GangBo-ic.com, Please review product page below for detailed information, including TNPU080513K7AZEN00 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPU080513K7AZEN00 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
