TNPU0603806RBZEN00

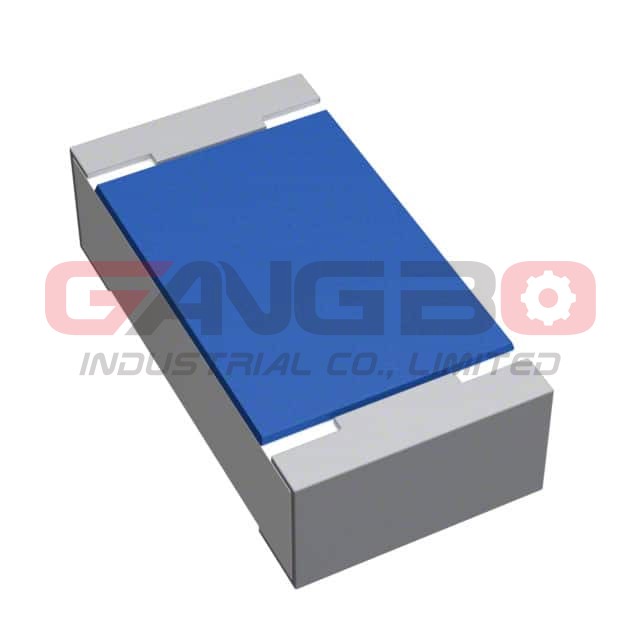

Image is for reference, please contact us to get the real picture

Part No :: TNPU0603806RBZEN00

Manufacturer: Vishay / Dale

Description: RES SMD 806 OHM 0.1% 1/10W 0603

Catalog: Chip Resistors-Surface Mount

Availability: 292729 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 21 - Sep 25 2025

PDF: TNPU0603806RBZEN00 PDF

Type	Description
Series:	TNPU e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	806 Ohms
Tolerance:	±0.1%
Power (Watts):	0.1W, 1/10W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±5ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Ratings:	AEC-Q200
Size / Dimension:	0.063" L x 0.033" W (1.60mm x 0.85mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

TNPU0603806RBZEN00 is available at GangBo-ic.com, Please review product page below for detailed information, including TNPU0603806RBZEN00 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPU0603806RBZEN00 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
