TNPU080522K1BZEN00

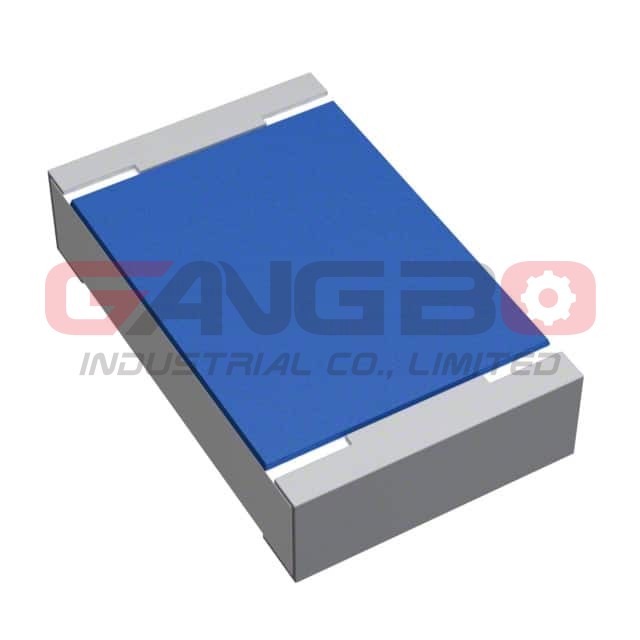

Image is for reference, please contact us to get the real picture

Part No :: TNPU080522K1BZEN00

Manufacturer: Vishay / Dale

Description: RES SMD 22.1K OHM 0.1% 1/8W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 982898 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 30 - Oct 04 2025

PDF: TNPU080522K1BZEN00 PDF

Type	Description
Series:	TNPU e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	22.1 kOhms
Tolerance:	±0.1%
Power (Watts):	0.125W, 1/8W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±5ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	AEC-Q200
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

TNPU080522K1BZEN00 is available at GangBo-ic.com, Please review product page below for detailed information, including TNPU080522K1BZEN00 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPU080522K1BZEN00 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
