RCL1225560RJNEG

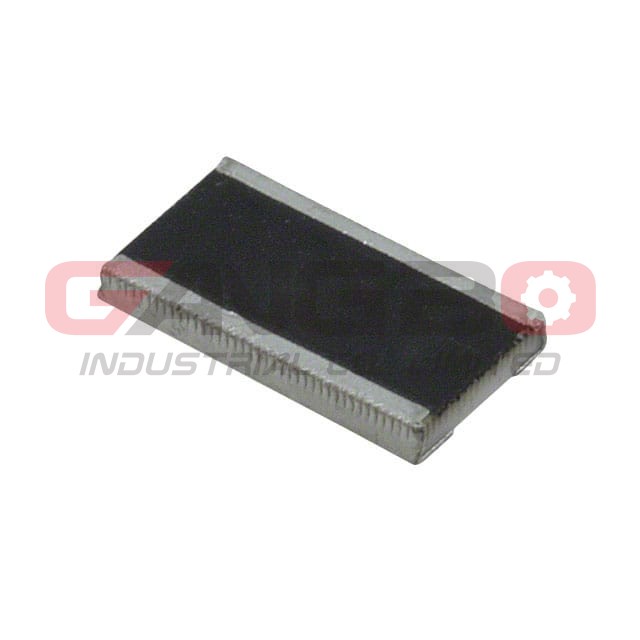

Image is for reference, please contact us to get the real picture

Part No :: RCL1225560RJNEG

Manufacturer: Vishay / Dale

Description: RES SMD 560 OHM 2W 2512 WIDE

Catalog: Chip Resistors-Surface Mount

Availability: 693469 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 20 - Sep 24 2025

PDF: RCL1225560RJNEG PDF

Type	Description
Series:	RCL
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	560 Ohms
Tolerance:	±5%
Power (Watts):	2W
Composition:	Thick Film
Features:	Automotive AEC-Q200
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	Wide 2512 (6432 Metric), 1225
Supplier Device Package:	1225
Ratings:	AEC-Q200
Size / Dimension:	0.126" L x 0.248" W (3.20mm x 6.30mm)
Height - Seated (Max):	0.031" (0.80mm)
Number of Terminations:	2
Failure Rate:	-

RCL1225560RJNEG is available at GangBo-ic.com, Please review product page below for detailed information, including RCL1225560RJNEG price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for RCL1225560RJNEG to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
