TNPW12063K09BEEA

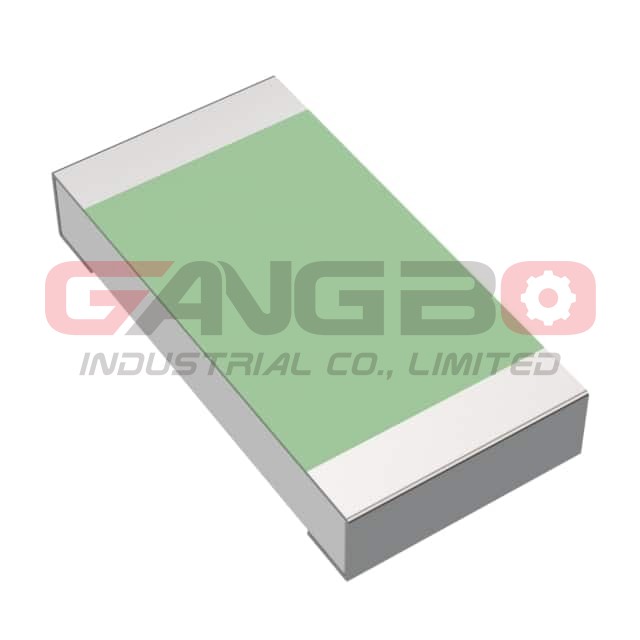

Image is for reference, please contact us to get the real picture

Part No :: TNPW12063K09BEEA

Manufacturer: Vishay / Dale

Description: RES 3.09K OHM 0.1% 2/5W 1206

Catalog: Chip Resistors-Surface Mount

Availability: 919691 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 28 - Oct 02 2025

PDF: TNPW12063K09BEEA PDF

Type	Description
Series:	TNPW e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	3.09 kOhms
Tolerance:	±0.1%
Power (Watts):	0.4W, 2/5W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Ratings:	AEC-Q200
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.026" (0.65mm)
Number of Terminations:	2
Failure Rate:	-

TNPW12063K09BEEA is available at GangBo-ic.com, Please review product page below for detailed information, including TNPW12063K09BEEA price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPW12063K09BEEA to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
