TNPW080556K0DEEA

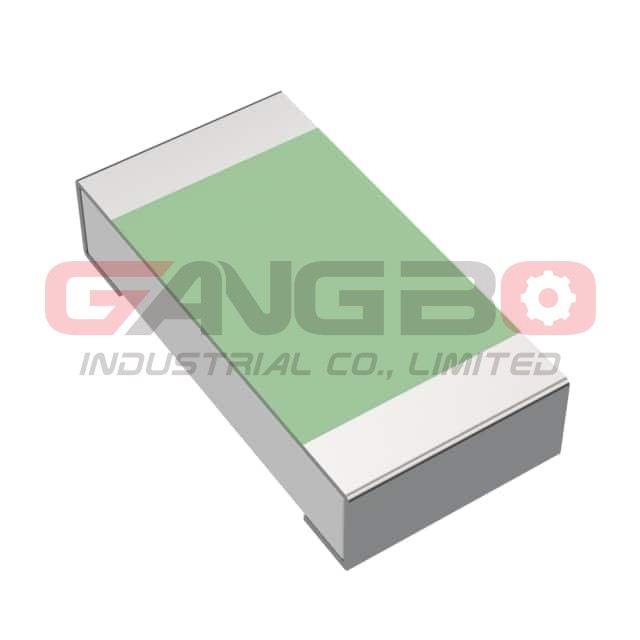

Image is for reference, please contact us to get the real picture

Part No :: TNPW080556K0DEEA

Manufacturer: Vishay / Dale

Description: RES 56K OHM 0.5% 1/5W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 627062 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 15 - Sep 19 2025

PDF: TNPW080556K0DEEA PDF

Type	Description
Series:	TNPW e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	56 kOhms
Tolerance:	±0.5%
Power (Watts):	0.2W, 1/5W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	AEC-Q200
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

TNPW080556K0DEEA is available at GangBo-ic.com, Please review product page below for detailed information, including TNPW080556K0DEEA price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPW080556K0DEEA to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
