RCWL0603R560JNEA

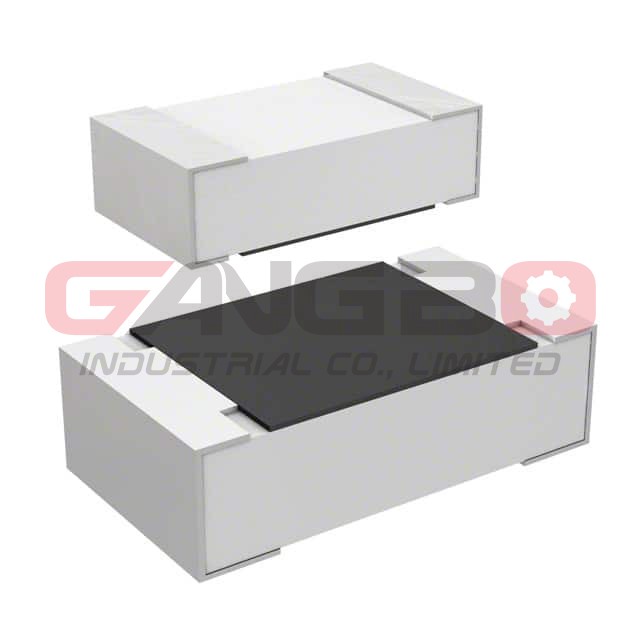

Image is for reference, please contact us to get the real picture

Part No :: RCWL0603R560JNEA

Manufacturer: Vishay / Dale

Description: RES 0.56 OHM 5% 1/10W 0603

Catalog: Chip Resistors-Surface Mount

Availability: 731273 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 29 - Oct 03 2025

PDF: RCWL0603R560JNEA PDF

Type	Description
Series:	RCWL
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	560 mOhms
Tolerance:	±5%
Power (Watts):	0.1W, 1/10W
Composition:	Thick Film
Features:	Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Ratings:	AEC-Q200
Size / Dimension:	0.061" L x 0.033" W (1.55mm x 0.85mm)
Height - Seated (Max):	0.020" (0.50mm)
Number of Terminations:	2
Failure Rate:	-

RCWL0603R560JNEA is available at GangBo-ic.com, Please review product page below for detailed information, including RCWL0603R560JNEA price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for RCWL0603R560JNEA to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
