PLT0603Z8560LBTS

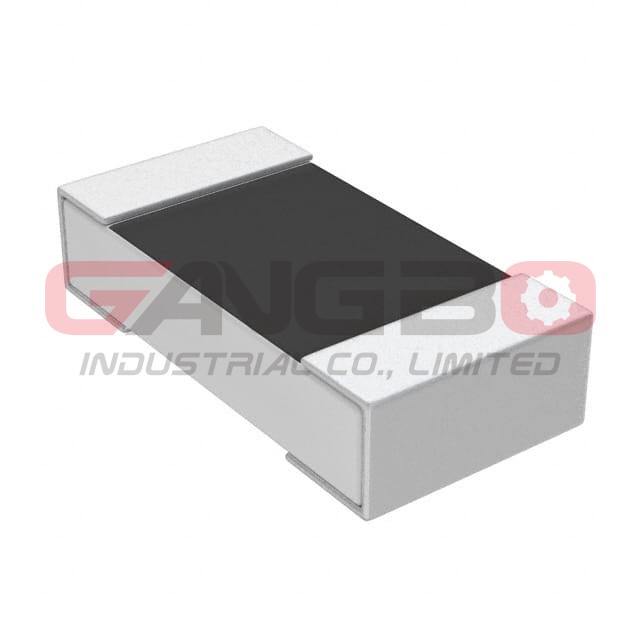

Image is for reference, please contact us to get the real picture

Part No :: PLT0603Z8560LBTS

Manufacturer: Vishay

Description: RES SMD 856 OHM 0.01% 0.15W 0603

Catalog: Chip Resistors-Surface Mount

Availability: 088108 pieces

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

PDF: PLT0603Z8560LBTS PDF

Type	Description
Series:	PLT
Package:	Strip
Part Status:	Active
Resistance:	856 Ohms
Tolerance:	±0.01%
Power (Watts):	0.15W
Composition:	Thin Film
Features:	Anti-Corrosive, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient:	±5ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Ratings:	-
Size / Dimension:	0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max):	0.020" (0.51mm)
Number of Terminations:	2
Failure Rate:	-

PLT0603Z8560LBTS is available at GangBo-ic.com, Please review product page below for detailed information, including PLT0603Z8560LBTS price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PLT0603Z8560LBTS to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
