D55342H07B20B0PTF

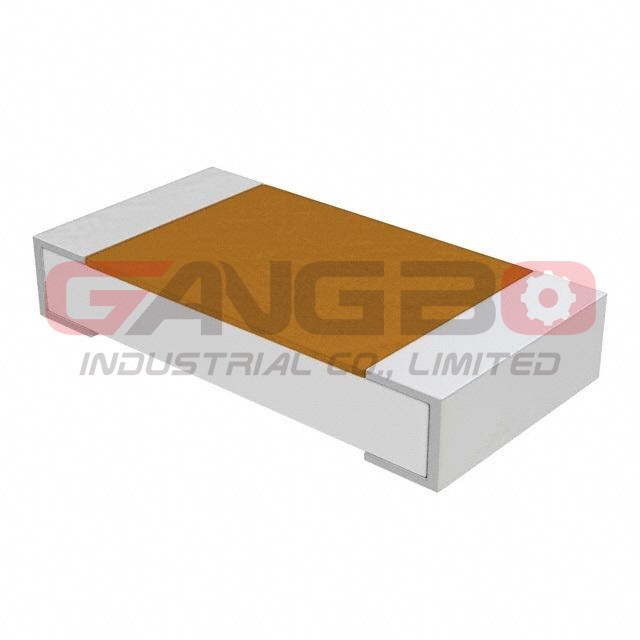

Image is for reference, please contact us to get the real picture

Part No :: D55342H07B20B0PTF

Manufacturer: Vishay / Dale

Description: RES SMD 20K OHM 0.1% 1/4W 1206

Catalog: Chip Resistors-Surface Mount

Availability: 457245 pieces

Shipped from: HK warehouse

Expected Shipping Date: Aug 28 - Sep 01 2025

PDF: D55342H07B20B0PTF PDF

Type	Description
Series:	Military, MIL-PRF-55342, RM1206
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	20 kOhms
Tolerance:	±0.1%
Power (Watts):	0.25W, 1/4W
Composition:	Thin Film
Features:	Military, Non-Inductive
Temperature Coefficient:	±50ppm/°C
Operating Temperature:	-55°C ~ 150°C
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Ratings:	-
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.033" (0.84mm)
Number of Terminations:	2
Failure Rate:	P (0.1%)

D55342H07B20B0PTF is available at GangBo-ic.com, Please review product page below for detailed information, including D55342H07B20B0PTF price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for D55342H07B20B0PTF to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
