PAT0805E1053BST1

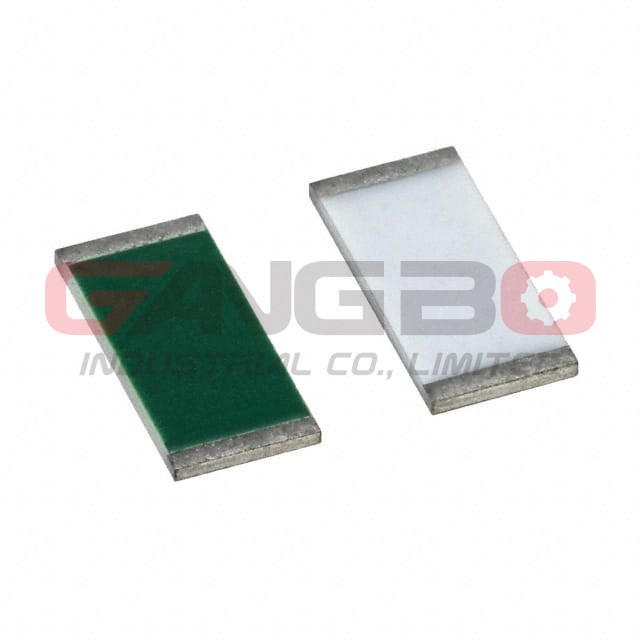

Image is for reference, please contact us to get the real picture

Part No :: PAT0805E1053BST1

Manufacturer: Vishay

Description: RES SMD 105K OHM 0.1% 1/5W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 493349 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 07 - Sep 11 2025

PDF: PAT0805E1053BST1 PDF

Type	Description
Series:	PAT
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	105 kOhms
Tolerance:	±0.1%
Power (Watts):	0.2W, 1/5W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	AEC-Q200
Size / Dimension:	0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max):	0.018" (0.46mm)
Number of Terminations:	2
Failure Rate:	-

PAT0805E1053BST1 is available at GangBo-ic.com, Please review product page below for detailed information, including PAT0805E1053BST1 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PAT0805E1053BST1 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
