TNPW1206698KBYEA

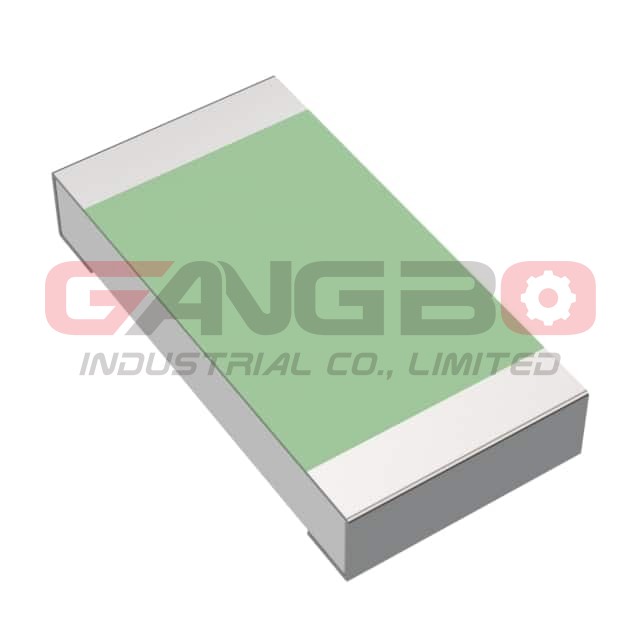

Image is for reference, please contact us to get the real picture

Part No :: TNPW1206698KBYEA

Manufacturer: Vishay / Dale

Description: RES 698K OHM 0.1% 2/5W 1206

Catalog: Chip Resistors-Surface Mount

Availability: 922892 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 19 - Sep 23 2025

PDF: TNPW1206698KBYEA PDF

Type	Description
Series:	TNPW e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	698 kOhms
Tolerance:	±0.1%
Power (Watts):	0.4W, 2/5W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±10ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Ratings:	AEC-Q200
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.026" (0.65mm)
Number of Terminations:	2
Failure Rate:	-

TNPW1206698KBYEA is available at GangBo-ic.com, Please review product page below for detailed information, including TNPW1206698KBYEA price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPW1206698KBYEA to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
