TNPW080514K7BYTA

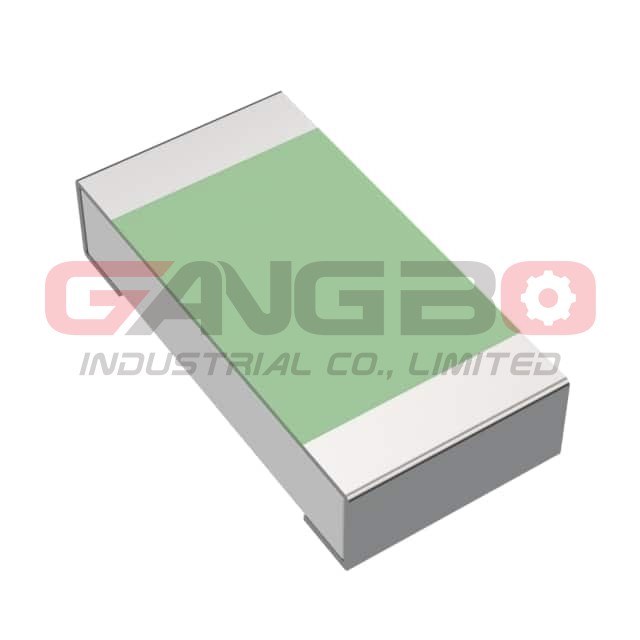

Image is for reference, please contact us to get the real picture

Part No :: TNPW080514K7BYTA

Manufacturer: Vishay / Dale

Description: RES 14.7K OHM 0.1% 1/8W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 511351 pieces

Shipped from: HK warehouse

Expected Shipping Date: Sep 23 - Sep 27 2025

PDF: TNPW080514K7BYTA PDF

Type	Description
Series:	TNPW
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	14.7 kOhms
Tolerance:	±0.1%
Power (Watts):	0.125W, 1/8W
Composition:	Thin Film
Features:	Military
Temperature Coefficient:	±10ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	-
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

TNPW080514K7BYTA is available at GangBo-ic.com, Please review product page below for detailed information, including TNPW080514K7BYTA price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TNPW080514K7BYTA to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
