HLE-117-02-S-DV-A-K-TR

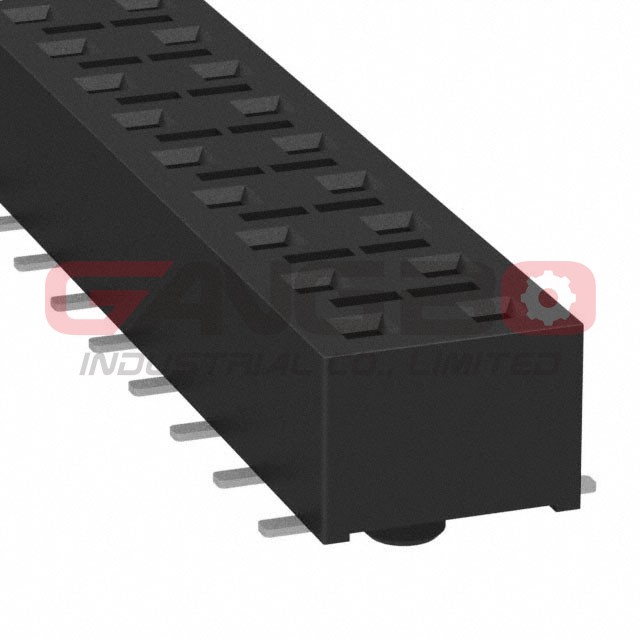

Image is for reference, please contact us to get the real picture

Part No :: HLE-117-02-S-DV-A-K-TR

Manufacturer: Samtec, Inc.

Description: CONN RCPT 34POS 0.1 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Availability: 139613 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 28 - Nov 01 2025

Type	Description
Series:	HLE
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	34
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Black
Insulation Height:	0.144" (3.66mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Pick and Place
Current Rating (Amps):	4.1A per Contact
Voltage Rating:	400VAC

HLE-117-02-S-DV-A-K-TR is available at GangBo-ic.com, Please review product page below for detailed information, including HLE-117-02-S-DV-A-K-TR price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for HLE-117-02-S-DV-A-K-TR to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
