315-83-156-41-003101

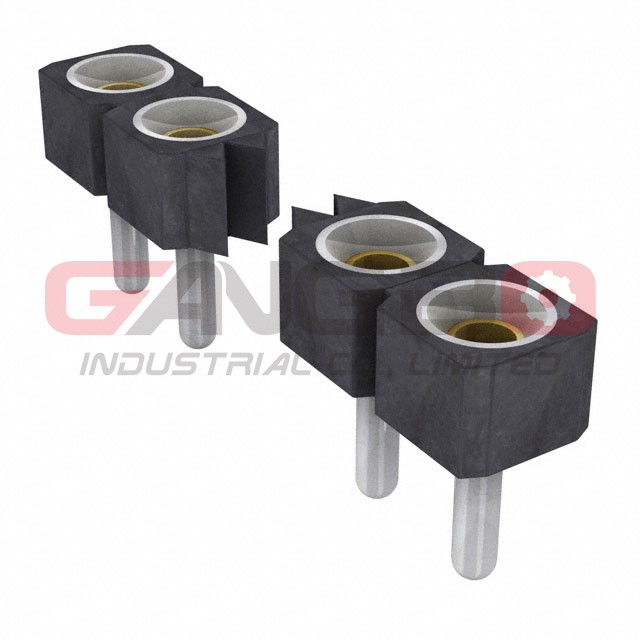

Image is for reference, please contact us to get the real picture

Part No :: 315-83-156-41-003101

Manufacturer: Preci-Dip

Description: CONN SOCKET 56POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Availability: 069606 pieces

Shipped from: HK warehouse

Expected Shipping Date: Nov 01 - Nov 05 2025

PDF: 315-83-156-41-003101 PDF

Type	Description
Series:	315
Package:	Bulk
Part Status:	Active
Connector Type:	Socket
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	56
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	29.5µin (0.75µm)
Insulation Color:	Black
Insulation Height:	0.095" (2.41mm)
Contact Length - Post:	0.095" (2.41mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1A
Voltage Rating:	-

315-83-156-41-003101 is available at GangBo-ic.com, Please review product page below for detailed information, including 315-83-156-41-003101 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 315-83-156-41-003101 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
