EHT-120-01-S-D-SM-22-P-TR

EHT-120-01-S-D-SM-22-P-TR

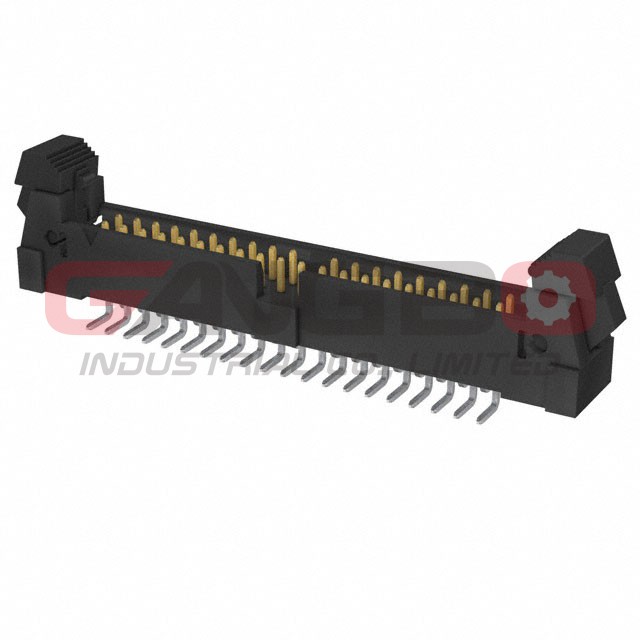

Image is for reference, please contact us to get the real picture

Part No :

EHT-120-01-S-D-SM-22-P-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 40POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
479747 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 02 - Nov 06 2025
Type Description
Series:EHT
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:39
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.370" (9.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot, Pick and Place
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
EHT-120-01-S-D-SM-22-P-TR is available at GangBo-ic.com, Please review product page below for detailed information, including EHT-120-01-S-D-SM-22-P-TR price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for EHT-120-01-S-D-SM-22-P-TR to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
