0426240390

0426240390

CONN HEADER R/A 15POS 2.54MM

0426240390

0426240390

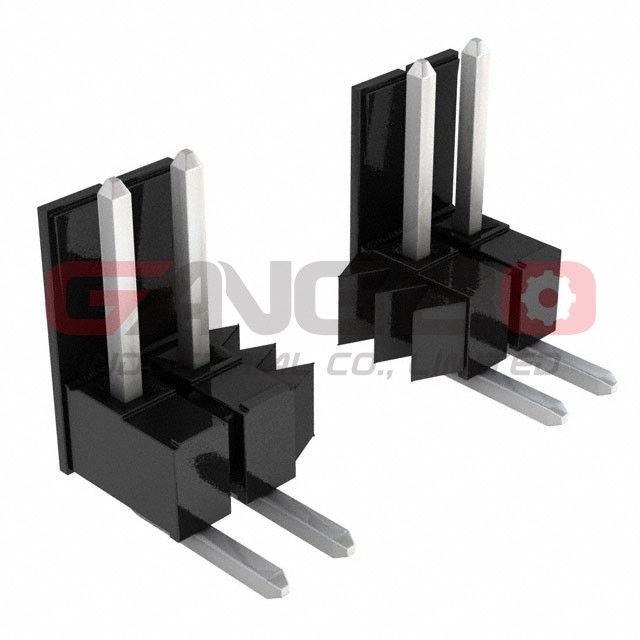

Image is for reference, please contact us to get the real picture

Part No :

0426240390

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 15POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
319031 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 17 - Oct 21 2025
PDF
0426240390 PDF
Type Description
Series:KK254, 42624
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:-
Insulation Height:0.284" (7.21mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0426240390 is available at GangBo-ic.com, Please review product page below for detailed information, including 0426240390 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0426240390 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
