S8B-ZR

S8B-ZR

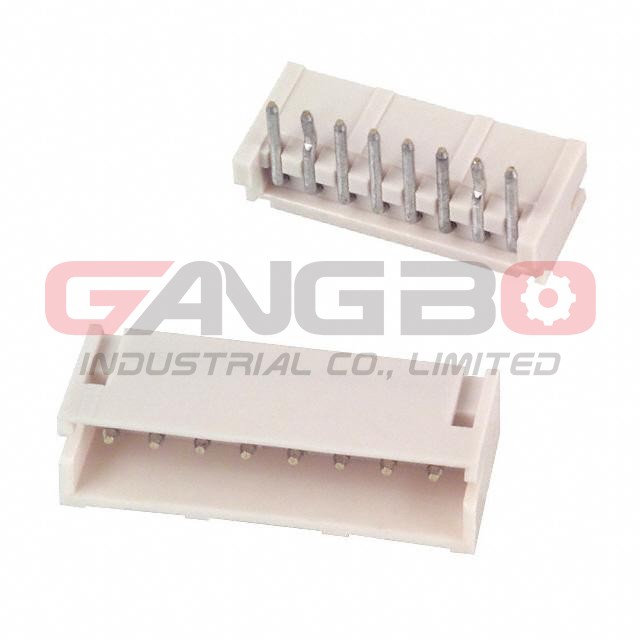

Image is for reference, please contact us to get the real picture

Part No :

S8B-ZR

Manufacturer
JST
Description
CONN HEADER R/A 8POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
098909 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 07 - Nov 11 2025
PDF
S8B-ZR PDF
Type Description
Series:ZH
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:0.106" (2.69mm)
Overall Contact Length:-
Insulation Height:0.146" (3.70mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A
Voltage Rating:50V
S8B-ZR is available at GangBo-ic.com, Please review product page below for detailed information, including S8B-ZR price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for S8B-ZR to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
