S6B-PH-SM3-TB

S6B-PH-SM3-TB

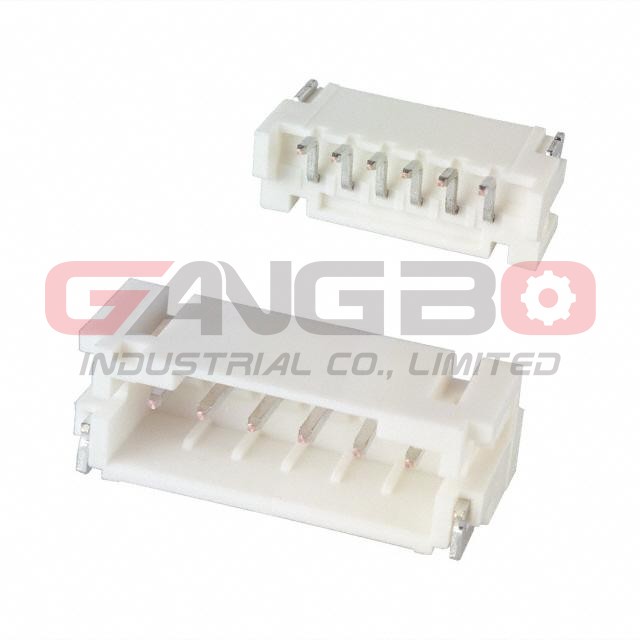

Image is for reference, please contact us to get the real picture

Part No :

S6B-PH-SM3-TB

Manufacturer
JST
Description
CONN HEADER SMD R/A 6POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
808780 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 06 - Nov 10 2025
PDF
S6B-PH-SM3-TB PDF
Type Description
Series:PH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.217" (5.51mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
S6B-PH-SM3-TB is available at GangBo-ic.com, Please review product page below for detailed information, including S6B-PH-SM3-TB price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for S6B-PH-SM3-TB to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
