1-794626-6

1-794626-6

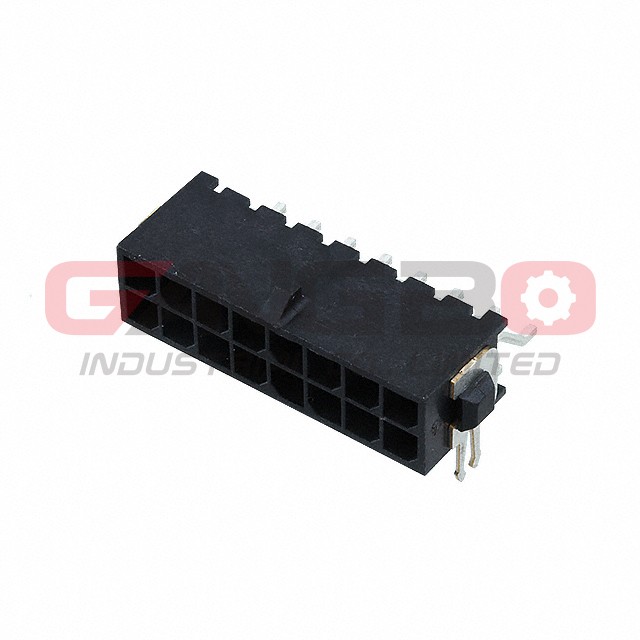

Image is for reference, please contact us to get the real picture

Part No :

1-794626-6

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER SMD R/A 16POS 3MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
578457 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 28 - Nov 01 2025
PDF
1-794626-6 PDF
Type Description
Series:Micro MATE-N-LOK
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.290" (7.37mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
1-794626-6 is available at GangBo-ic.com, Please review product page below for detailed information, including 1-794626-6 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1-794626-6 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
