PTC09DAGN

PTC09DAGN

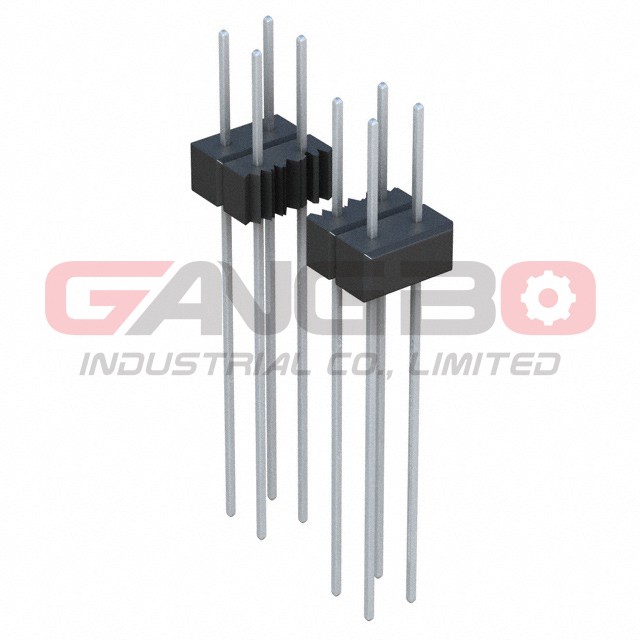

Image is for reference, please contact us to get the real picture

Part No :

PTC09DAGN

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER VERT 18POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
308130 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 20 - Oct 24 2025
PDF
PTC09DAGN PDF
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:18
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.720" (18.29mm)
Overall Contact Length:1.050" (26.67mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
PTC09DAGN is available at GangBo-ic.com, Please review product page below for detailed information, including PTC09DAGN price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PTC09DAGN to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
