1-103414-0

1-103414-0

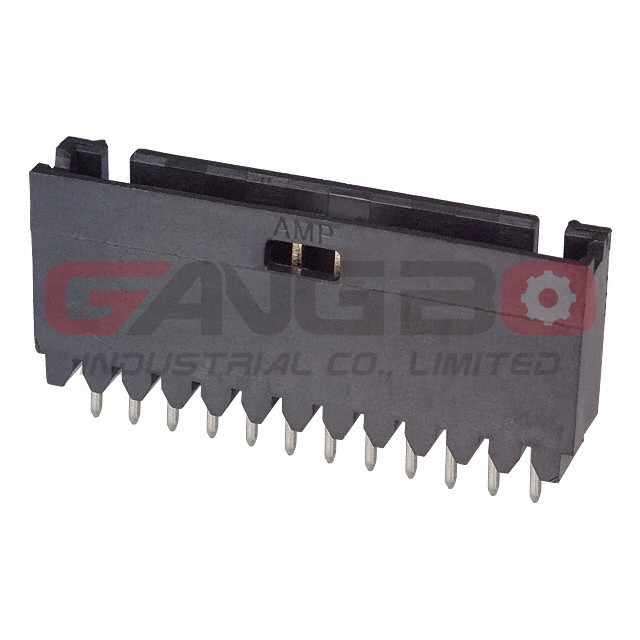

CONN HEADER VERT 12POS 2.54MM

1-103414-0

1-103414-0

Image is for reference, please contact us to get the real picture

Part No :

1-103414-0

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 12POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
575357 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 16 - Nov 20 2025
PDF
1-103414-0 PDF
Type Description
Series:AMPMODU Mod II
Package:Tube
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.589" (14.96mm)
Insulation Height:0.549" (13.94mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
