YMC24SAAN

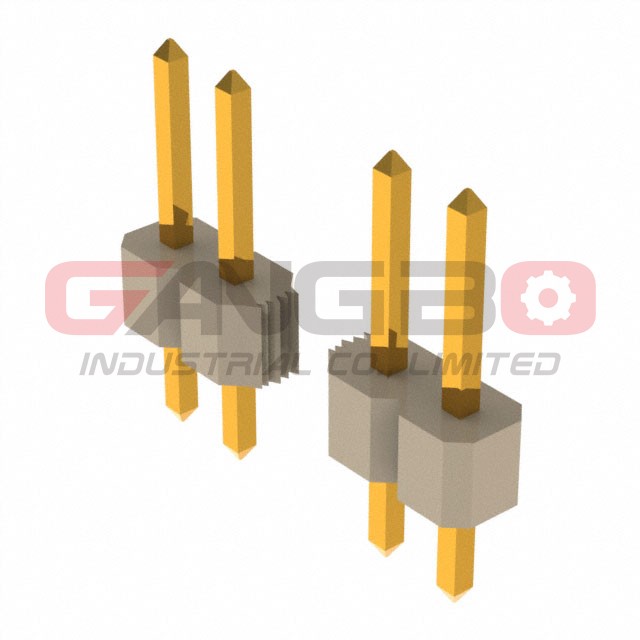

Image is for reference, please contact us to get the real picture

Part No :: YMC24SAAN

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER VERT 24POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

Availability: 094309 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 17 - Oct 21 2025

PDF: YMC24SAAN PDF

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	24
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.450" (11.43mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Gold
Contact Material:	Beryllium Copper
Insulation Material:	Polyetheretherketone (PEEK)
Features:	-
Operating Temperature:	-65°C ~ 250°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Tan
Current Rating (Amps):	3A
Voltage Rating:	-
