M50-3504042

M50-3504042

CONN HEADER VERT 80POS 1.27MM

M50-3504042

M50-3504042

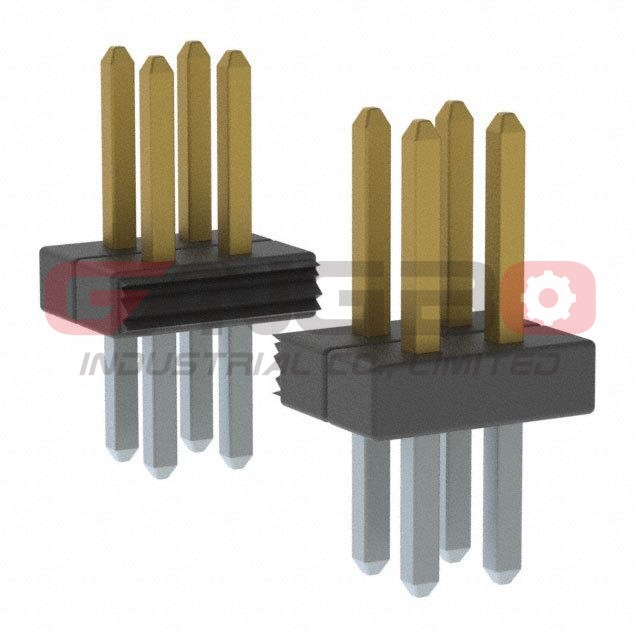

Image is for reference, please contact us to get the real picture

Part No :

M50-3504042

Manufacturer
Harwin
Description
CONN HEADER VERT 80POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
519751 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
PDF
M50-3504042 PDF
Type Description
Series:Archer M50
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:80
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.118" (3.00mm)
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:0.248" (6.30mm)
Insulation Height:0.039" (1.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:-
M50-3504042 is available at GangBo-ic.com, Please review product page below for detailed information, including M50-3504042 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for M50-3504042 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
