TSM-109-05-S-DV-TR

TSM-109-05-S-DV-TR

CONN HEADER SMD 18POS 2.54MM

DTS24W21-35PN

DTS24W21-35PN

CONN RCPT MALE 79POS GOLD CRIMP

TMMH-139-01-S-Q

TMMH-139-01-S-Q

2MM LOW PROFILE STRIPS

TMM-142-01-G-D-RA-022

TMM-142-01-G-D-RA-022

2MM TERMINAL STRIP

TSM-109-05-S-DV-TR

TSM-109-05-S-DV-TR

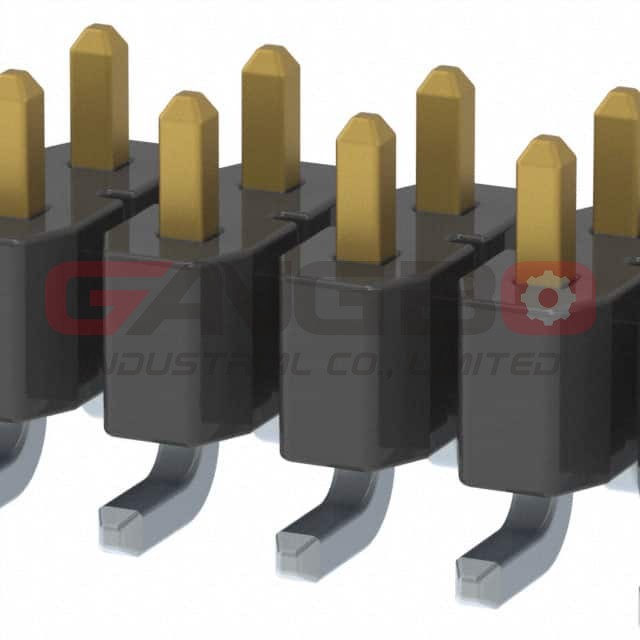

Image is for reference, please contact us to get the real picture

Part No :

TSM-109-05-S-DV-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 18POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
619561 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
PDF
TSM-109-05-S-DV-TR PDF
Type Description
Series:TSM
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:18
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.075" (1.90mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
TSM-109-05-S-DV-TR is available at GangBo-ic.com, Please review product page below for detailed information, including TSM-109-05-S-DV-TR price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for TSM-109-05-S-DV-TR to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
