0015800163

0015800163

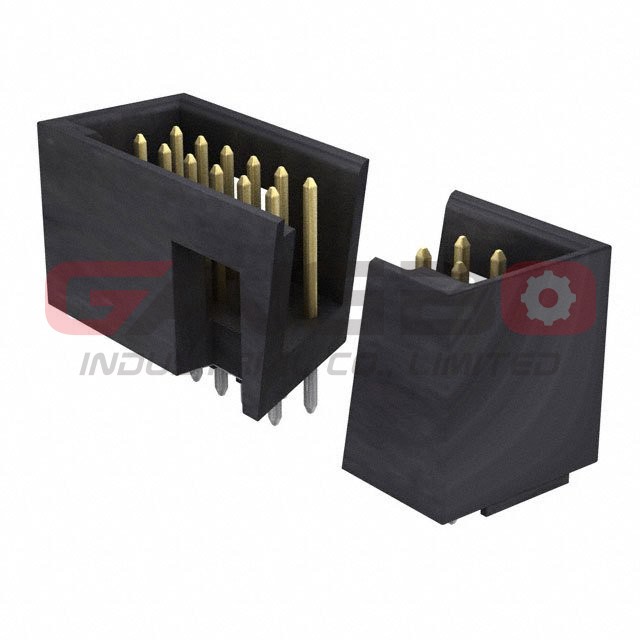

Image is for reference, please contact us to get the real picture

Part No :

0015800163

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 16POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
615961 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 08 - Nov 12 2025
PDF
0015800163 PDF
Type Description
Series:C-Grid 70567
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.315" (8.00mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.570" (14.48mm)
Insulation Height:0.475" (12.07mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0015800163 is available at GangBo-ic.com, Please review product page below for detailed information, including 0015800163 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0015800163 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
